SmartBright Slim Panel
RC091V LED27S/865 PSU W60L60 GM G3 MR- Acrylate
The Philips SmartBright range is comprised of a selection of essential LED luminaires that
come with Philips high levels of quality at a competitive price. Reliable, energy efficient and
affordable lighting solutions that you can count on to deliver what they promise. Philips SmartBright
Slim Panels are our most affordable LED solution. The complete product family is available in multiple
mounting types, product dimensions and lumen options to suit the widest range of applications. And thanks
to the edge-lit structure, SmartBright panels deliver both higher system efficacy and excellent lighting
uniformity. The essential range of LED slim panels for everyday installations.
Product Data
General Information
- Light source color: 865 cool daylight
- Optical cover/lens type: Acrylate
- Control interface: -
- Protection class IEC: Safety class II
- Flammability mark: For mounting on normally flammable surfaces
- CE mark: CE mark
- Number of products on MCB of 16 A type B 26
- Light source engine type: LED
- Brand: Philips
- Value ladder: Value
- Luminous Flux: 2,700 lumen
- Luminous Efficacy (rated) (Nom): 95lm/W
- Color rendering index (CRI): >80
- Input Voltage: 220-240V
- Line Frequency: 50 or 60 Hz
- Input Frequency: 50 or 60 Hz
- Power Consumption: 28W
- Inrush current: 60 A
- Power Factor (Fraction): 0.9
- Ambient temperature range: -10 to +35°C
- Dimmable: No
- Luminous flux tolerance: +/-10%
- Init. Corr. Color Temperature: 6500K
- Initial chromaticity: (0.3123, 0.3282) SDCM ≤5
- Power consumption tolerance: +/-10%
- Housing Material: Steel
- Optical cover/lens material: Polystyrene
- Housing Color: White RAL 9003
- Optical cover/lens finish: Opal

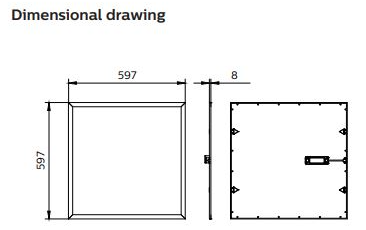

- Overall length: 597mm
- Overall width: 597mm
- Overall height: 8mm
- Effective projected area: 0.3564 m²
- Dimensions (Height x Width x Depth): NaN x Nan x NaN mm
Approval and Application
- Ingress protection code: IP20 [Finger-protected]
- Mech. impact protection code IK02 [0.2 J standard]
Product Data
- Full product code: 871951451076099
- Order product name: RC091V LED27S/865 PSU W60L60 GM G3 MR
- Order code: 911401877281
- Numerator - Quantity Per Pack: 1
- Numerator - Packs per outer box: 6
- Material number (12NC): 911401877281
- Net weight: 2000kg
- Full product name: RC091V LED27S/865 PSU W60L60 GM G3 MR
- RC091V LED27S/865 PSU W60L60 GM G3 MR
- EAN/UPC - Case: 8719514510982
